Creating Infrastructure That Feels Like Home
Crows Nest is a village, not officially, but it operates like one in character and scale. It features low-rise homes, local shops, and a sense of neighbourhood, and Sydney Metro's train station needed to feel like it belonged in that village.
Woods Bagot looked to achieve that with human-scale materials, warm finishes, and design references to local heritage, and they enlisted our help.

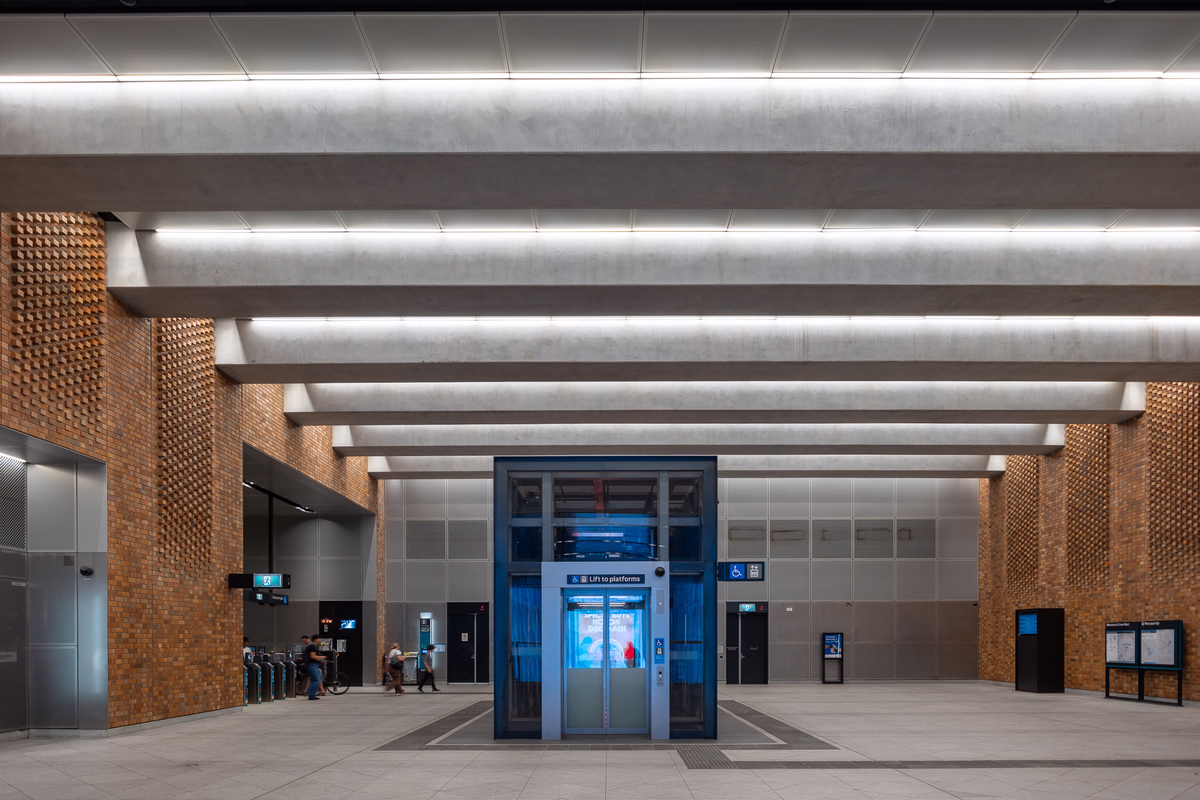

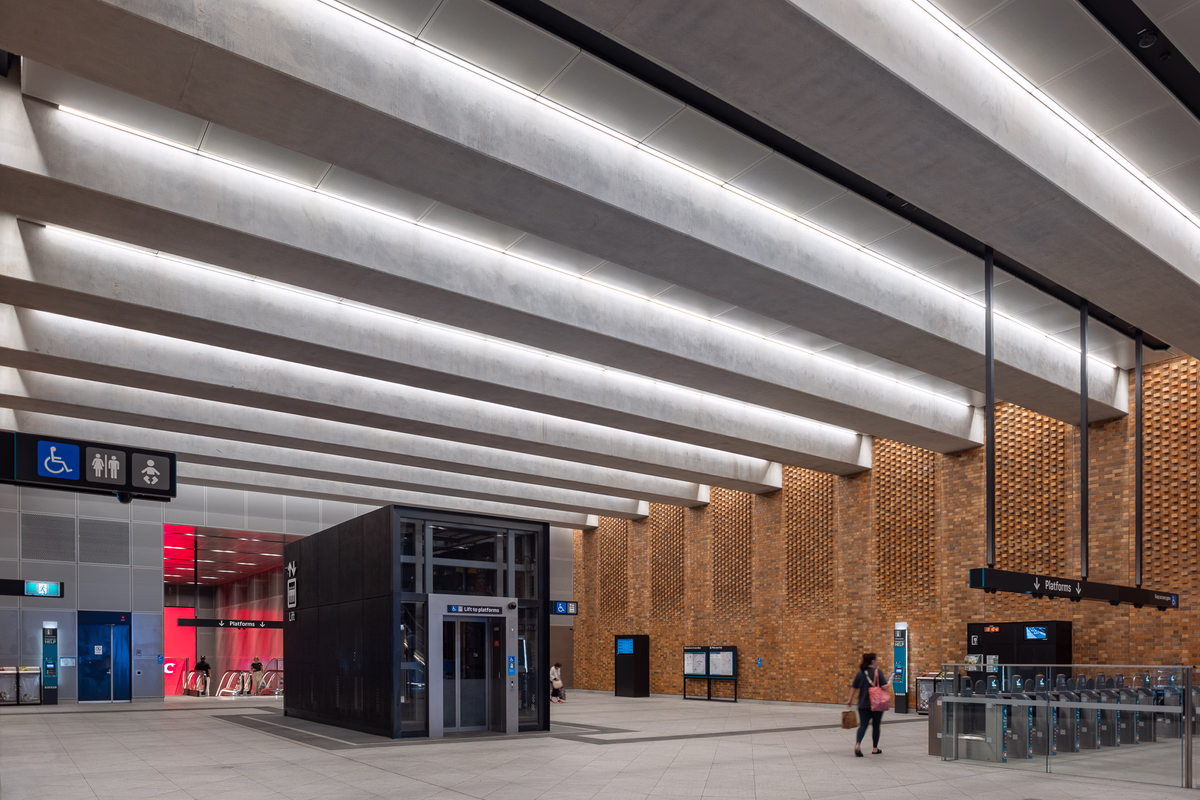

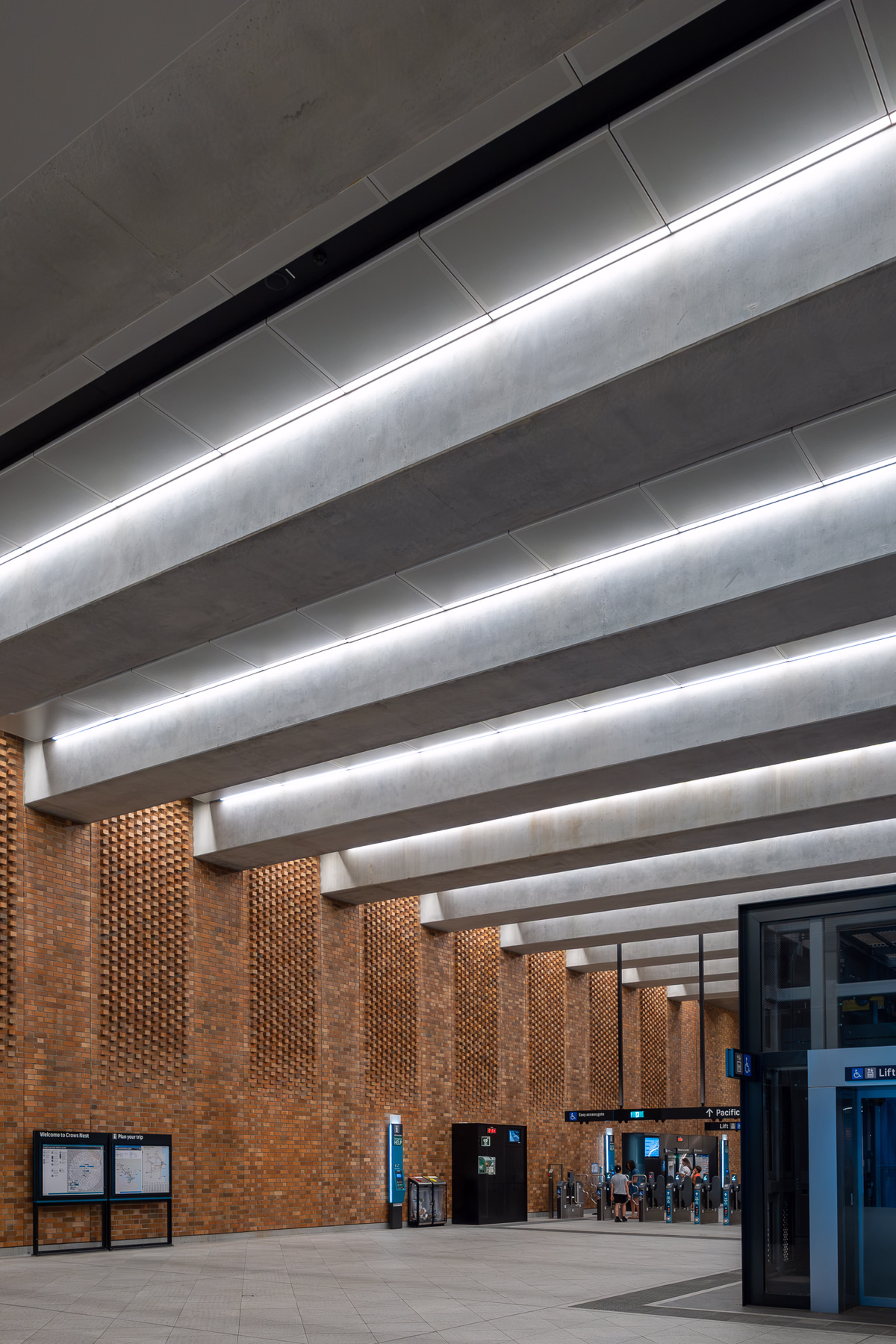

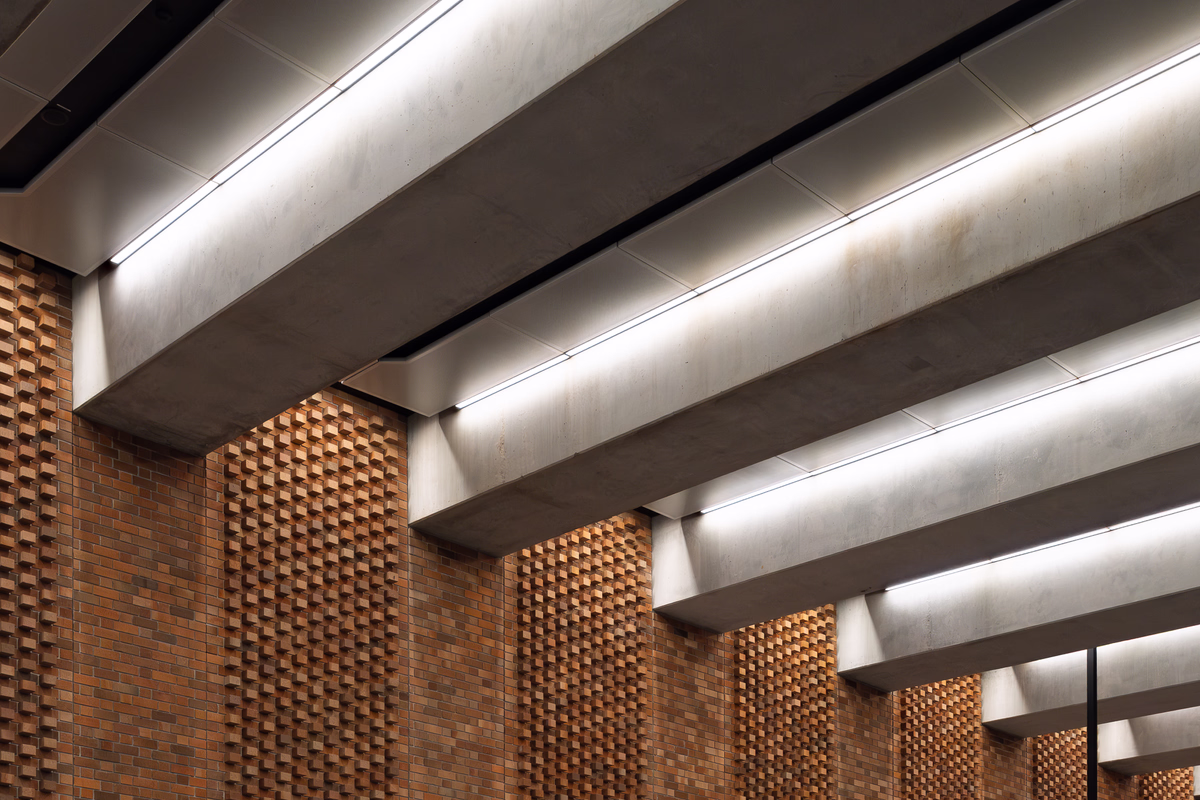

Precast beams were exposed to acknowledge the infrastructure, but softer materials like brickwork and tiles were woven alongside them to help the station feel residential, approachable, and intimate despite its scale.
Most transit stations demand robustness: high IP ratings to handle moisture, and high IK ratings to withstand vandalism. Traditional station lighting is clinical, institutional, and harsh. Crows Nest needed to perform like this while looking like it belonged in a residential environment.
Interior lighting that feels domestic

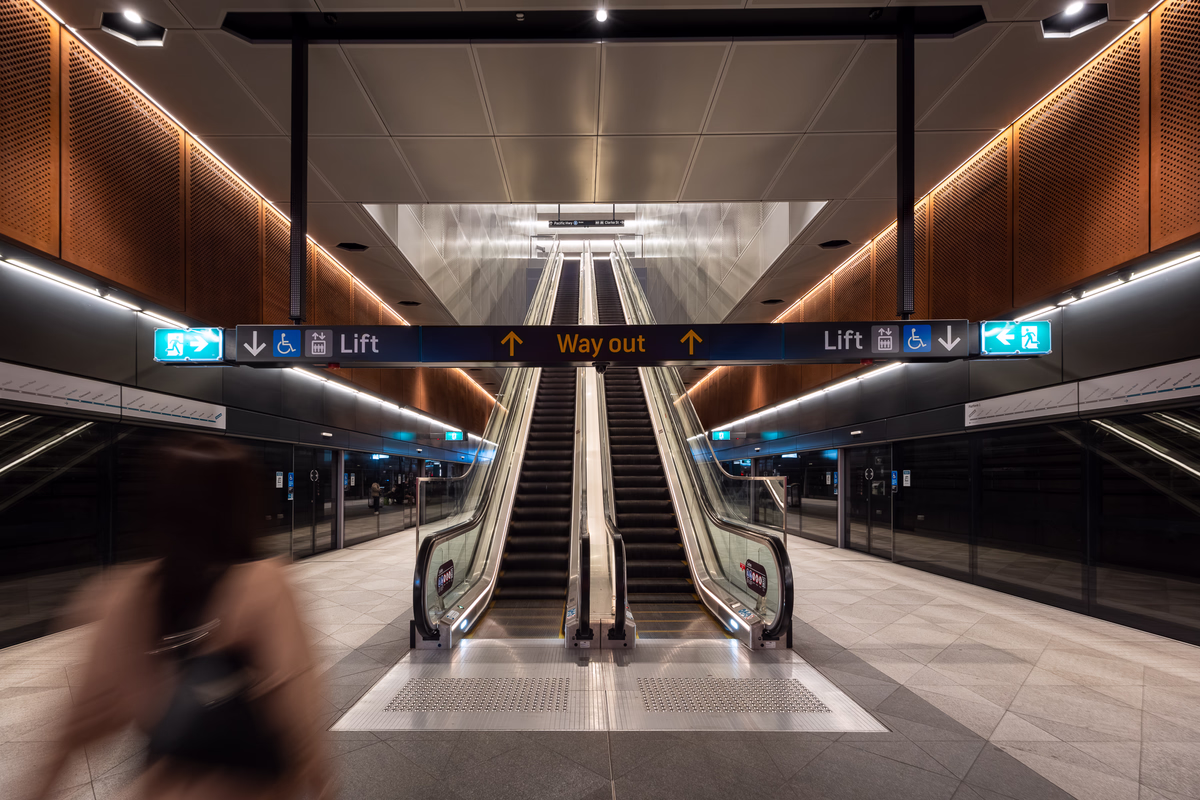

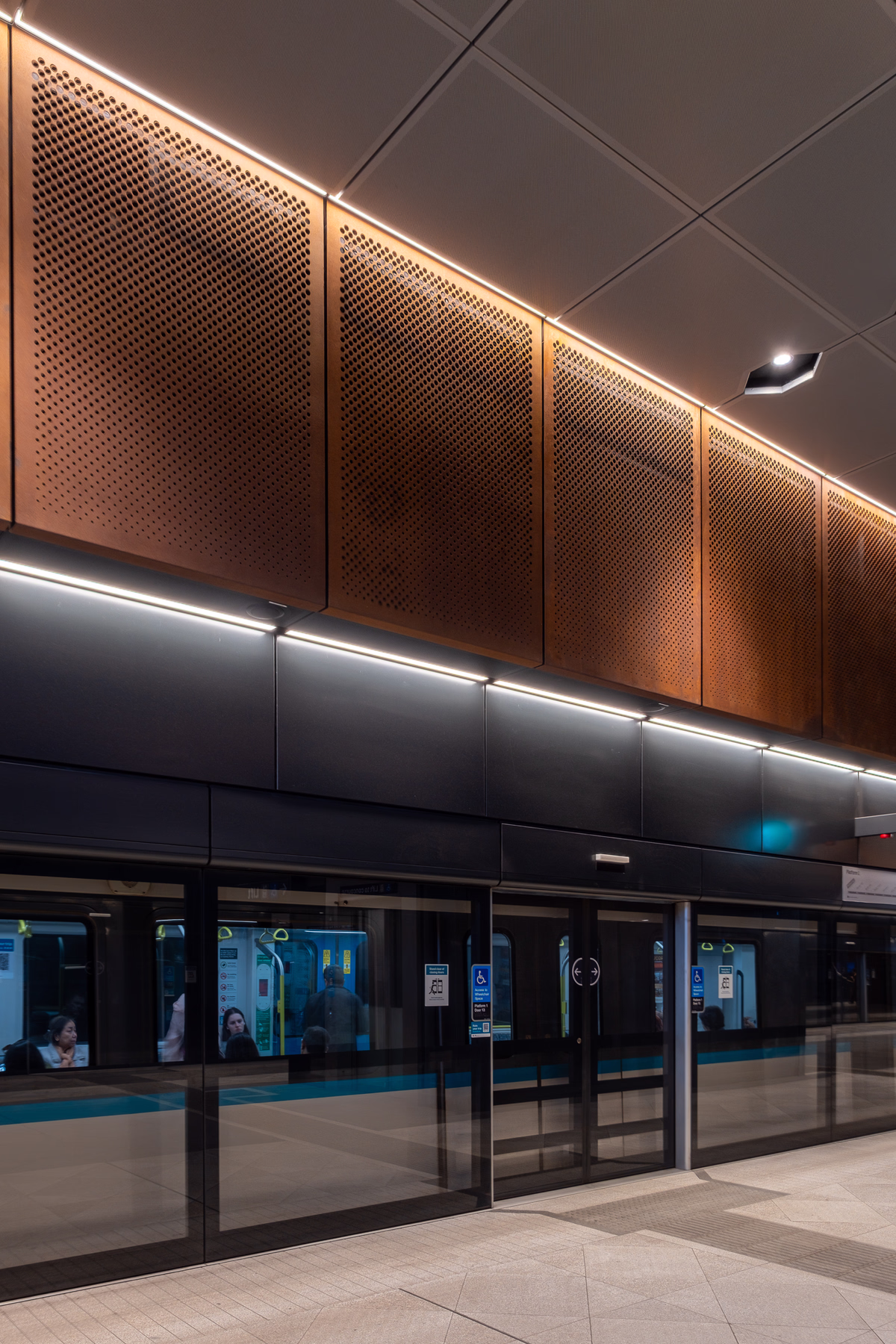

The plan called for warm, approachable, and continuous lighting that was more living room than transit hub. The concourse and platform areas needed consistent illumination without visible fixtures or gaps that would interrupt the clean ceiling lines, all across one kilometre of linear space.
The solution was Energyline Robust linear fixtures running through the concourse and platform areas, chosen because they deliver performance while maintaining a clean 75mm profile.
Energyline Robust carries an IP65 rating, essential for a station environment where humidity and airflow are constants. It also features an IK08/IK10 impact rating to withstand a deliberate strike from a blunt object, covering the vandalism risk that occurs in high-traffic public spaces.
Ceiling panels with a modular grid system

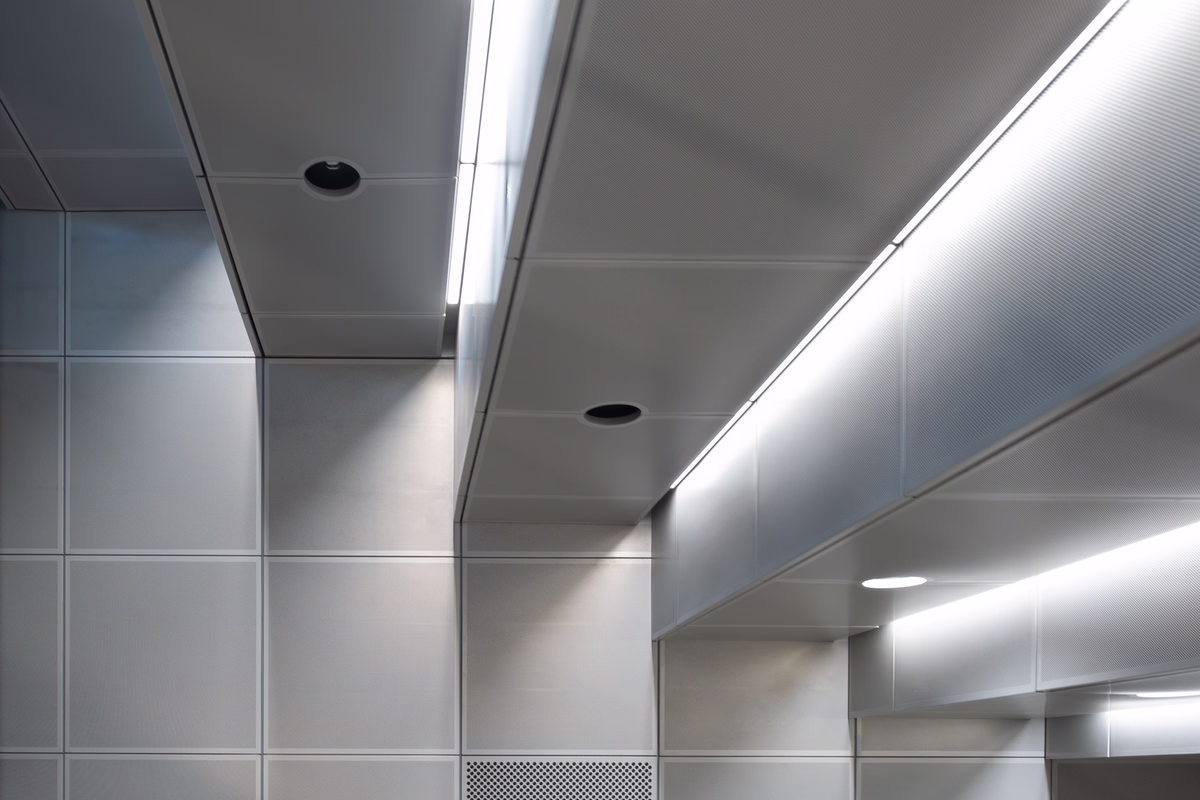

Woods Bagot had specified lighting fixtures that align with a grid to maintain a clean, continuous ceiling line with a 1x1 millimetre tolerance. Any gap between the fixture and the ceiling panel would look wrong, and an overhang would disrupt the line.
As standard lighting products aren't designed to this tolerance, we worked directly with Energyline's manufacturing team to ensure the exact dimension specifications based on the ceiling module sizes were met. Energyline fabricated bespoke cut-to-length fixtures designed specifically for Crows Nest's architectural requirements.
Precision lighting that is invisible
You don't see it, you just experience the quality of light and the cohesion of the space. Walking through Crows Nest Station, the ceiling reads as one continuous plane. The light is warm and consistent, feeling less like transit infrastructure and more like a community space.
Functionally, the system performs exactly as specified, and it can handle the reality of a busy public space. Sydney Metro has lighting infrastructure that will perform reliably for years without requiring service.
Crows Nest was the perfect example of designers, manufacturers and suppliers collaborating thoughtfully. The result is a space that feels like it belongs thanks to careful design and thoughtful execution at every level.
